Specification
| Model | STC-1 |
|---|---|
| Steam trap automatic diagnosis time | Clogging: 2 seconds Leak: 2 or 8 seconds Good: 8 seconds |
| Working pressure for steam trap automatic diagnosis | 0.05～8.0MPa |
| Working temperature for surface temperature sensor | 0～300℃ |
| Auto Power ON/OFF | After 5 minutes (While steam trap automatic diagnosis mode and not in operation) |
| Ambient temperature | 0～40℃(Non-freezing) |
| Where to use | Inside and outside (However, it should not be exposed to rain water). |
| Battery | DC1.5V AAA alkaline batteries 2 pcs Continuous operating time: about 8 hours（※1） |

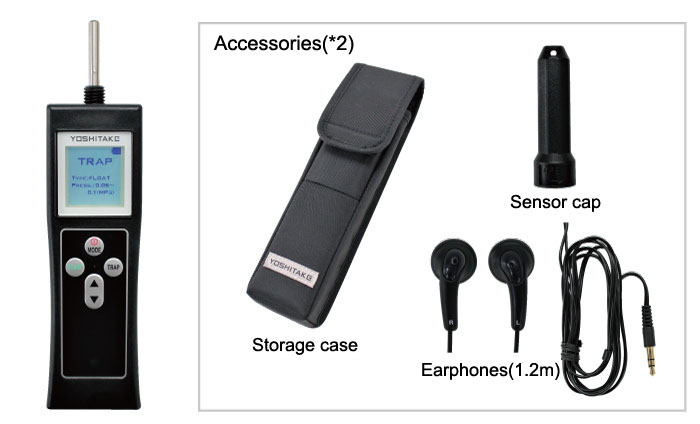

| Accessories（※2） | Storage case、Earphones、AAA alkaline batteries 2pcs（※3） |
※1：When using alkaline batteries (25℃, steam trap diagnosis mode).
※2：Confirm package contents before use. If any, please contact us.
※3：The batteries are not included for export outside Japan.
Mode (Function)
| Mode (Function) | Overview |
|---|---|
| Steam trap automatic diagnosis mode | Automatically diagnose the condition of steam trap（※4） |
| Surface temperature sensor mode | Indicates the surface temperature of steam piping |
| Auscultation mode | Listen to the condition of steam trap |
※4 Results of steam trap automatic diagnosis
| Result | Working conditions of steam trap | LED display | Screen display |
|---|---|---|---|

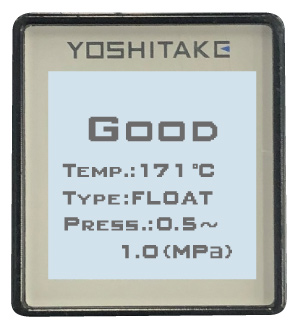

| GOOD | Good condition | Green |  |

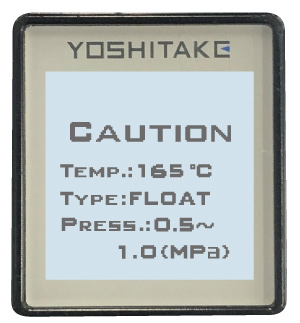

| CAUTION | Hard to judge whether GOOD or LEAK, caution required for the possibility of LEAK. | Yellow |  |

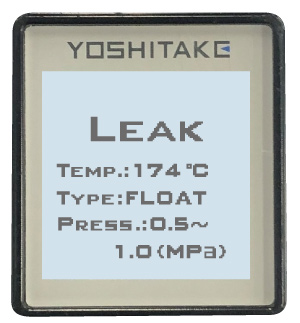

| LEAK | High possibility of steam leakage | Red |  |
| LOW TEMP. | High possibility of clogged, not in service, or inadequately low capacity, because the surface temperature is low. | Yellow |  |

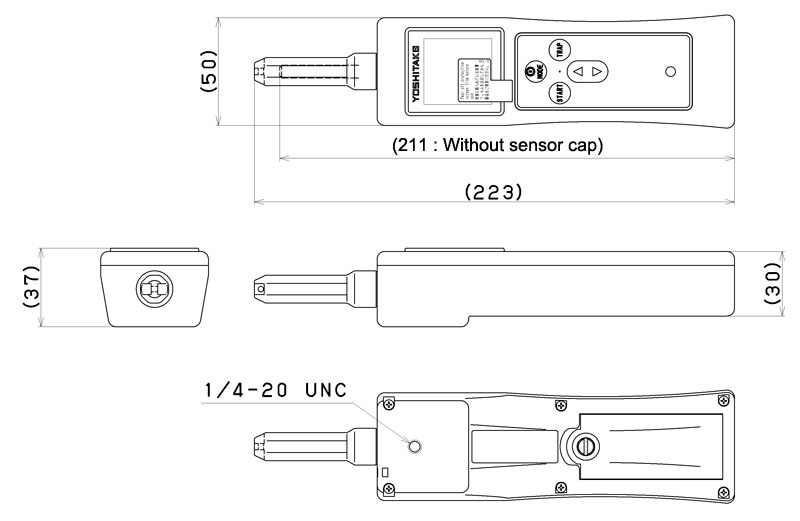

Dimensions and weight
Weight: 235g (Batteries included)
