Fluid Control Engineering

Kinds of Steam Trap

1. Classification by Model
Major classification Operation principle Inside classification Feature
Mechanical
steam trap
Specific gravity difference of steam and condensate Bucket type
- Internal bucket type
- Bucket type
- Exhaust performance is good.
- Structure is easy. Service life is long.
- Enduring a water hammer.
- Small steam leakage.
- Intermittent discharge which is excellent in durability.
Float type
- Float type with lever
- Quiet operation.
- Continuous discharge.
- Small steam leakage.
- Low tolerance for water hammer.
Thermostatic
steam trap
Difference in temperature of steam and condensate Bellows type
Bimetal type
- Discharge condensate temperature is controllable.
- Exhaust performance is good.
- No failure of valve closure.
- Quiet operation.
- Enduring water hammer.
Thermodynamic
steam trap
Thermodynamic characteristic difference of
steam and condensate
Disc type
- Open air cooling type.
- Air insulation type.
- Simple structure.
- Small and lightweight.
- Usable for overheated steam.
- Enduring water hammer.

Mechanical steam trap

Image:TB-811
Inverted bucket type
Image:TF-6
Float type with lever

Thermostatic steam trap

Bimetal type
Image:TS-1A
Bellows type

Thermodynamic steam trap

Image:
Disc type
Image:TD-10NA
Air insulation type

إلى أعلى هذه الصفحة

2. Operation Principle, Merit and Demerit

(1) Inverted bucket type steam trap

Operation principle
Image1 Bucket descends by its own weight and located in the bottom of a trap, and the valve opens fully. Condensate which flows into a main body fills a bucket and a main body, and excessive condensate is discharged through the valve of full open.

[Caution]
At the time of initial attachment, shut the stop valve on piping, accumulate condensate, and start the trap after making this condensate full in a trap and performing water seal.

arrow

図2 Mixture of steam, air and gas flows into the trap and accumulates on upper portion of the bucket. When this mixture reaches at a certain amount (about 2 / 3 of the bucket), the bucket is lifted with buoyancy, then closing the valve. Without influx of condensate the trap keeps closing.

arrow

図3 When condensate flows into the trap again, the steam condenses inside the bucket, increasing the level of liquid in the bucket. This velocity is moderated by inflow of condensate. In addition, air and other gases in the bucket is discharged through an air vent at the upper part of the bucket, and accumulates at the upper part of the trap. While steam is discharged from the air vent, air rises in the condensate as very fine bubbles by difference in specific gravity due to no pressure difference in the body. Since it condenses before reaching the top of the trap, no steam loss is caused.

arrow

図4 The influx of condensate keeps rising of liquid level by condense of steam in the bucket. When the liquid level exceeds a certain level (about 1 / 3 of the bucket) the bucket loses buoyancy and sinks, and the valve opens. Gas accumulated inside the trap is discharged, and then condensate is discharged with foreign substance through the valve. This frequency of valve opening increased or decreased by the amount of condensate inflow. When a large amount of gas such as air discharged through air vents of the bucket accumulates at the upper portion of the trap and pushes the water level inside the bucket, the bucket loses buoyancy and sinks, and open the valve to discharge gas.
Above is a complete operating cycle, and the cycle is repeated.

Movie


Operation principle of inverted bucket type steam trap (3MB)

You need Windows Media Player to watch the movie. To download Windows Media Player, click the below link.

Get Windows Media Player

إلى أعلى هذه الصفحة

Merit
No condensate retention

No condensate retention since operated by specific gravity difference of steam and condensate.

Endurability

Original internal structure enables long service life.

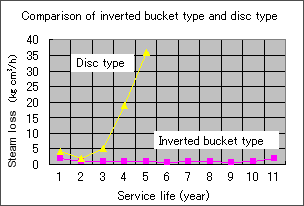

As stated in the chart below, disc type steam trap will become not to able to stop steam within two years but internal bucket type has no change for steam loss over three years.

グラフ

Energy Saving

Since air film of piping wall is removed by air intermittent operation, thermal efficiency is increased considerably. Moreover, compared with conventional type, compact and lightweight design of energy saving.

Strong for scale

Since its structure makes scale fine, the inlet strainer is not required in principle.

Demerit
  • - Low tolerance for freeze.
  • - There are restrictions on installation direction, except for some model.
  • - Compared to disk type trap, the body is relatively larger.
  • - Lever type has abrasion partly.

إلى أعلى هذه الصفحة

(2) Float Type Steam Trap

Operation principle
図1 At start-up, since the float is down, the valve is closed. In this state, air in the system and piping is discharged out through the air vent which is opened. When condensate flows into the product, the float flows up and opens the valve, and then discharges condensate. Air is kept to be discharged out from the air vent.

arrow

図2 When steam flows into the trap, inner pressure of the air vent rises by steam temperature, and the air vent is closed. According to the amount of condensate inflow, the float position moves up and down, at the same time opening degree of the valve changes, as a result, condensate is continuously discharged. When condensate inflow is out, the float moves down and closes the valve.

arrow

図3 When air or non-condensable gas flows into the product, it accumulates in the upper part of the product. When temperature of air or non-condensable gas decreases with condensate inflow, the air vent opens and discharges it to outside of the trap.

Movie


Operation principle of float type steam trap (3MB)

You need Windows Media Player to watch the movie. To download Windows Media Player, click the below link.

Get Windows Media Player

إلى أعلى هذه الصفحة

Merit
No condensate retention

No condensate retention because this type of trap operates by specific gravity difference of steam and condensate as inverted bucket type

High tolerance for pressure difference

Operation is stable without influence of inlet pressure fluctuation or back pressure. Most suitable for condensate recovery.

Energy saving design

No steam loss because the valve seat is always sealed by water.

Quick warming up

Built-in bellows type air vent discharge air inside piping at the start of ventilation.

Demerit
  • - Low tolerance for water hammer due to sealed float.
  • - Low tolerance for freeze.
  • - The body of lever float type is relatively large because of lever structure.

إلى أعلى هذه الصفحة

(3) Thermostatic Steam Trap

(a) Bellows type
図1 At start-up, the bellows contracts and opens the valve to discharge air and condensate. Valve is kept fully open until steam flow in.

arrow

Image2 When steam flow into the trap, the liquid in the bellows sealed is heated to evaporate. When inside pressure increases, bellows inflates with balance to pressure in the trap and the valve is closed.

When air and condensate accumulate in the trap, and temperature becomes slightly lower than the saturation steam temperature, the valve contracts again to open.

Movie


Operation principle of thermostatic steam trap (bellows type) (4MB)

You need Windows Media Player to watch the movie. To download Windows Media Player, click the below link.

Get Windows Media Player

إلى أعلى هذه الصفحة

Merit
  • - Exhaust perofrmance is good.
  • - Operation is quiet.
  • - Compact and lightweight.
Demerit
  • - Condensate retention can be generated because operation starts at lower temperature than saturated steam temperature.
  • - Low durability for corrosion by fatigue of bellows.
  • - Low tolerance for water hammer.

إلى أعلى هذه الصفحة

(b) Bimetal type
Image1 Thermostatic and bimetal type steam trap has two metal plates (called bimetal) of different thermal expansion coefficient are bonded. This trap uses them for the element part for use of nature that it is curved by heat.

arrow

Image2 There are various shapes or combinations of plates by manufacturers for bimetal, adjustment is necessary for each steam pressure since the saturated steam temperature and temperature difference are required to operate the bimetal.

إلى أعلى هذه الصفحة

Merit
  • - Can control condensate temperature to be discharged.
  • - Good discharge performance of low temperature air.
  • - Operation is quiet.
  • - High tolerance for water hammer.
Demerit
  • - Condensate retention can be generated because operation starts at lower temperature than saturated steam temperature.
  • - There is possibility of steam loss due to delay of valve close if adjustment is not enough.
  • - Low durability for corrosion by fatigue of bimetal.

إلى أعلى هذه الصفحة

(4) Thermodynamic Steam Trap

(a) Disc Type

Disc type steam trap has been widely used because it is small, lightweight, less mounting space and no restriction on mounting direction.
This type of trap has the advantage that simple and compact structure, such as moving part is disc only.

Image1 Image2

Air and condensate flow by the thermal jacket around a pressure change chamber, reaching the underside of the disc and pushing up the disc, then they are discharged to the outlet side. Since steam which reaches the disc passes through the underside of the disk at high speed, the pressure drops at this part and the disc is closed. Steam pressure in the pressure change chamber leaks slowly and is reduced. As a result, the valve opens by the pressure at the underside of this disc. Condensate is discharged at this time, and the valve is closed immediately if the steam flows in.

Since the pressure change chamber is for steam jacket type, it is not affected by pressure fluctuation in the pressure change chamber by outside temperature and weather, and chattering is fewer.

Movie


Operation principle of thermodymic steam trap (3MB)

You need Windows Media Player to watch the movie. To download Windows Media Player, click the below link.

Get Windows Media Player

إلى أعلى هذه الصفحة

Merit
  • - Compact and lightweight.
  • - Large tolerance for freeze.
  • - No limitation for installation direction.
  • - Usable for overheated steam.
Demerit
  • - Ordinary disc type is easily influenced by outside temperature and may cause chattering.
  • - Since the trap basically operates by temperature, there is possibility of condensate retention.

إلى أعلى هذه الصفحة

Advice

There is no steam trap which can meet 100% of requirements.
In order to consider high efficient improvement and energy saving for a system, there are some points for selection.

  1. No condensate retention
  2. High tolerance for back pressure to recover condensate
  3. Intermittent condensate discharge for heat efficiency

Select the trap which can meet these three points, in addition, it is similarly important that the trap has no steam leakage, is superior in durability, and can be easily inspected and maintained.

As a conclusion, for disc type trap, initial cost is not expensive and plumbing work is easy but there are problems of condensate retention and tolerance for back pressure. For float type, it can works continuously and has large capacity but low tolerance for water hammer and freeze. For thermostatic type, operation is quiet but it cannot be used for fluid requiring large capacity. For inverted bucket type, it has good balance of various performances and can be installed in various places but has low tolerance for freeze. Since each trap has drawback and advantage, leave the selection to Yoshitake for appropriate trap.
